No. |
Item |
Spec |
Remark |
|
1 |
Charge Voltage |
4.20±0.02V |
|
|
2 |
Nominal Voltage |
3.7V |
Cell voltage between3.75V ~3.95V before shipping |
|
3 |
Nominal Capacity |
700mAh@ 0.2C Discharge |
Nominal capacity refers to the capacity of 0.2C discharge with 3.0V cut-off voltage. |
|
4 |
Cycle Life |
≥500 Times |
One cycle refer to one charge period and then one discharge period. Test condition: Charge: 0.2C to 4.2V Discharge: 0.2C to 3.0V The cycle life is the cycle times when the discharge capacity is about 60% of the rated capacity. |
|
5 |
Self-discharge |
Residual Capacity>90% |
After standard charging, storied at 25°C±0.5°C for 30 days, then measure the capacity as item 4. |
|
6 |
Impedance |
Max:200mΩ |
After standard charging, measure the internal resistance with AC1KHz |
|
7 |
Standard Charge |
0.2C |
0.2C CC（constant current）charge to Max Charge voltage 4.2V,then CV(constant voltage 4.2V)charge current decline to ≤0.01C. |
|
8 |
Max Continuous Charge |
0.5C5A |
|
|
9 |
Standard Discharge |
0.2C |
0.2C CC（constant current）discharge to Min Discharge cut-off |
|
10 |
Max Continuous Discharge |
210mA |
|
|
11 |
Fast Charge |
1.0C5A |
Constant Current 1.0C5A,Constant Voltage 4.20V, 0.01 C5A cut-off |
|
12 |
Fast Discharge |
1.0C5A |
Constant current 1.0C5A, end voltage 2.8V |
|
13 |
Discharge Cut-off Voltage |
3.0V |
|
|
14 |
Operating Temperature |
Charge: 0 ℃~ +45℃ Discharge: -20℃~ +60℃ |
|
|
15 |
Storage Temperature |
Less than 1 year: -5~25℃ |
Cells must be storied at 3.75V~3.95V. During long period storage, cells should be maintained every 90 days. The method is to do a charge-discharge cycle with standard method, then charge to 3.75~3.95V. |
|
Less than 3 months: -10~40℃ |
|||
|
16 |
Weight |
Appr: 1.6g |
|
|
17 |

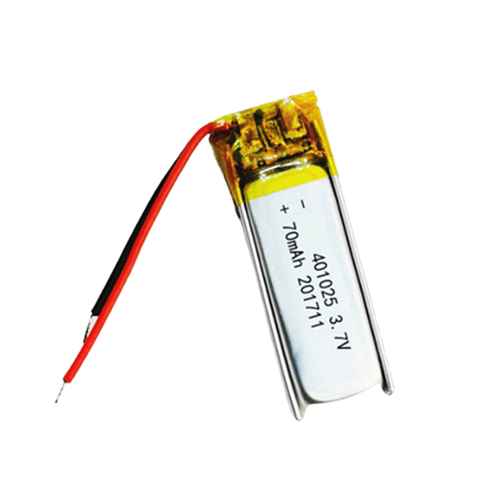

Pack Dimension |
T:4.0mm Max W: 10.0mm Max L: 25.0 mm Max |
Measured with weighting 300gf at 25℃± 0.5℃ Not including Tabs |
|
18 |
PCM |
16×4.0×0.6mm |
|
